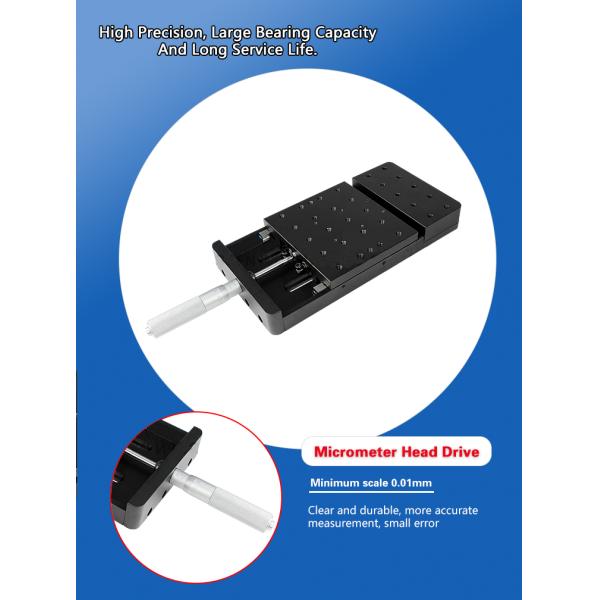

Steel Countertop Manual X-Axis Fine Adjustment Linear Slide Stage Stretch Platform PT-SD105
This manual stretching platform has high precision, good wear resistance and beautiful appearance. The product is guided by cross roller and V-shaped steel guide rail, and driven by precision micrometer head, with high cost performance. The size of the product can be used in single or multi-dimensional combination, and it is suitable for most occasions with certain requirements for load capacity and motion accuracy.
Product features
1. The guide rail is cross roller with V-shaped steel guide rail, with high precision, large bearing capacity and long service life;
2. The table top is made of steel, with good rigidity and corrosion resistance, suitable for industrial production;
3. Micrometer head is used for displacement adjustment;
4. The micrometer head is placed in the center of the translation table, which is convenient to operate;
5. Spring return structure is adopted to eliminate axial clearance;
6. The installation holes with standard hole spacing are distributed on the table and base to facilitate installation and combination;
7. It can form a multi-dimensional adjustment frame with other series of displacement tables.
Product specification
| Model Number | PT-SD105 |
| Drive mode | Micrometer head |
| Travel(mm) | 50 |
| Min Scale (mm) | 0.01 |
| Sensitivity (mm) | 0.002 |
| Accuracy (mm) | 0.003 |
| Platform Size (mm) | 110×120 |
| load Bearing (kg) | 5 |
| Net Wegiht(kg) | 1.25 |
Product Size
Application of manual displacement stage
Because of its high precision, strong controllability, high practicability and simple maintenance, the manual displacement table is widely used in scientific research, laser application, automatic measurement and detection equipment, industrial automation and other fields; And realize displacement control in vacuum, pollution, sterility, radiation and other environments.
FAQ
Q1. Are you trading company or manufacturer ?
A: We are a manufacturer.
Q2. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
